fence Pipe tube Post in usa and ca

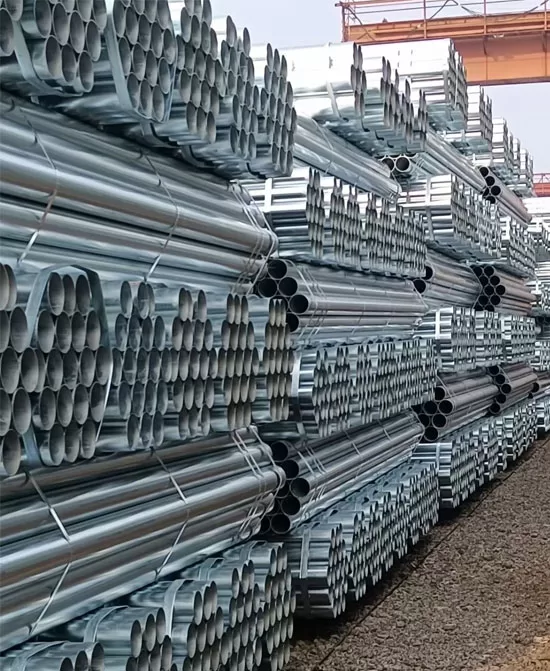

Galvanized Pipe and Tube are a significant component in our Fence systems. wfpipeusa stocks an extensive range and quantity of sizes and specifications which are available for alternate applications such as sign posts and non structural supports. The bulk of our pipe is manufactured to one of two specifications: BS LITE for Commercial Weight Hot Dip Galvanized Pipe and ASTM A53 Grade A for Schedule 40 Hot Dip Galvanized Pipe. wfpipeusa Fence Quality Control Program ensures that all Steel Pipe conform in strict accordance with their respective Standards and Specifications.

Call a wfpipeusa US representative for details.

065″ AND 069″

FENCE TUBES

080″ AND 095″

FENCE TUBES

BS LITE ADN ASTM A53A SCH40 GPE

FENCE TUBES

Adhesion ability of zinc

adhesion ability of zinc is better than others.

View Details

Tube surface smooth

Tube surface is smooth and bright after galvanization.

View Details

Anti-corrosion ability

anti-corrosion ability is better and there will be no white rust on surface.

View Details
Fence Tubes And Panel
Fence Tubes Applications
Fence Tubes Applications
s-l1600
SIZE（OD” * WT” * L(FT) OD Wall Thickness Length PCS/ BUNDLE TONS/ BUNDLE
inch mm inch mm FT mm

.065″ FENCE

PIPES

TUBES

 1.315″X.065″X18′ 1.315 33.4 0.065 1.65 18 5486 91 0.645
1.660″X.065″X18′ 1.660 42.2 0.065 1.65 18 5486 61 0.552
1.900″X.065″X18′ 1.900 48.3 0.065 1.65 18 5486 61 0.635
2.375″X.065″X18′ 2.375 60.3 0.065 1.65 18 5486 37 0.484
1.315″X.065″X21′ 1.315 33.4 0.065 1.65 21 6400 91 0.752
1.660″X.065″X21′ 1.660 42.2 0.065 1.65 21 6400 61 0.644
1.900″X.065″X21′ 1.900 48.3 0.065 1.65 21 6400 61 0.741
2.375″X.065″X21′ 2.375 60.3 0.065 1.65 21 6400 37 0.565
1.315″X.065″X24′ 1.315 33.4 0.065 1.65 24 7315 91 0.860
1.660″X.065″X24′ 1.660 42.2 0.065 1.65 24 7315 61 0.736
1.900″X.065″X24′ 1.900 48.3 0.065 1.65 24 7315 61 0.847
2.375″X.065″X24′ 2.375 60.3 0.065 1.65 24 7315 37 0.646

1. Hot dipped galvanized.

2. Plain Ends.

3. Plastic sheet covered and the packaged by 3+2+2+3 Gal steel strips.

4. Shipped by 20GP or 40GP or by bulk.

Fence Panel

Panels:12″*6″，10″*6″，10″*8″

Stands:30″*16″,36″*16″

SIZE（OD” * WT” * L(FT) OD Wall Thickness Length PCS/ BUNDLE TONS/ BUNDLE
inch mm inch mm FT mm

.069″ FENCE

PIPE

TUBES

 1.315″X.069″X18′ 1.315 33.4 0.069 1.75 18 5486 91 0.682
1.660″X.069″X18′ 1.660 42.2 0.069 1.75 18 5486 61 0.584
1.900″X.069″X18′ 1.900 48.3 0.069 1.75 18 5486 61 0.672
2.375″X.069″X18′ 2.375 60.3 0.069 1.75 18 5486 37 0.513
1.315″X.069″X21′ 1.315 33.4 0.069 1.75 21 6400 91 0.795
1.660″X.069″X21′ 1.660 42.2 0.069 1.75 21 6400 61 0.681
1.900″X.069″X21′ 1.900 48.3 0.069 1.75 21 6400 61 0.784
2.375″X.069″X21′ 2.375 60.3 0.069 1.75 21 6400 37 0.598
1.315″X.069″X24′ 1.315 33.4 0.069 1.75 24 7315 91 0.909
1.660″X.069″X24′ 1.660 42.2 0.069 1.75 24 7315 61 0.779
1.900″X.069″X24′ 1.900 48.3 0.069 1.75 24 7315 61 0.896
2.375″X.069″X24′ 2.375 60.3 0.069 1.75 24 7315 37 0.684
